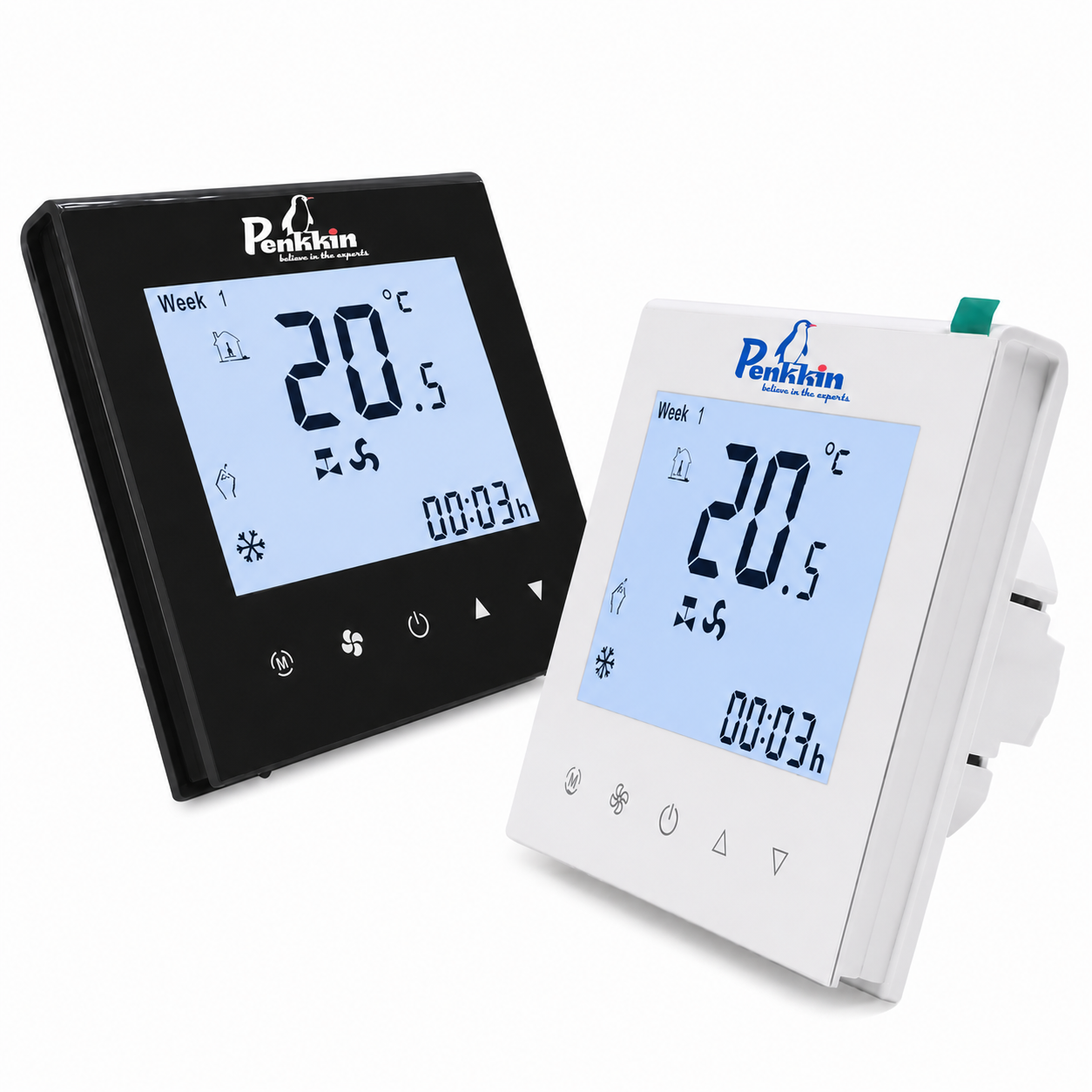

Penkkin PKN-WF11-FC-2/4 fan coil thermostat
PKN-WF11-FC-2/4 series standalone fan coil thermostat is to control fan coil system, with 3-speed fan and water-based valve outputs, which is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature.
Inquiry Now
Description
| Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | Fan Relay 5A(3A-inductive) | Temperature Accuracy | ±0.5°C |
| Valve Relay 5A(3A-inductive) | Set-Point Range | 5~35°C | |
| Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS (Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
| Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
