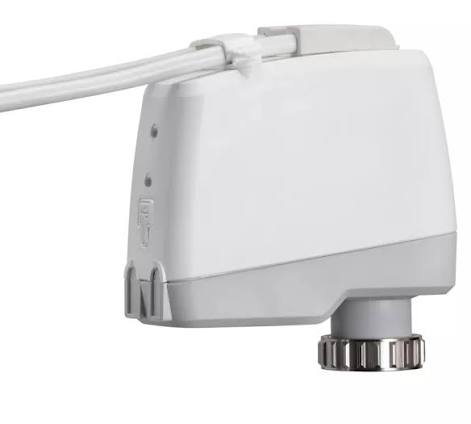

IMI TA-Slider 160
The IMI TA-Slider 160 is a highly versatile, digitally configurable proportional push actuator engineered by IMI Hydronic Engineering for advanced hydronic control and balancing in heating and cooling systems. It is specifically designed to work seamlessly with TA-Modulator balancing valves (sizes DN 15–32).
Inquiry Now
Description
Core Technical Specifications
- Adjusting Force: 160 N or 200 N (features automatic valve type detection and self-adjusts for IMI TA and Heimeier valves).
- Power Supply: 24 VAC/VDC.
- Control Input Signals: Proportional 0-10 VDC, 2-10 VDC, or dual-range configuration for change-over systems.
- Max Stroke / Lift: 6.9 mm with automatic valve stroke detection.
- Ingress Protection: IP54 protection class rating in all directions.
- Max Media Temperature: Up to 120°C.
- Physical Connection: M30×1.5 threaded coupling.
Key Features & Smart Capabilities
- Digital Commissioning: Offers over 200 setup options customizable via a smartphone. By plugging in a TA-Dongle USB device, engineers can fully configure parameters without mains power using the HyTune Mobile Application.
- Advanced Flow Limitation: Allows configuration of precise flow control thresholds (e.g., separate cooling and heating flow rates) instead of basic physical stroke limitations.
- System Diagnostics: Built-in memory stores the 10 most recent diagnostic error events for streamlined troubleshooting.
- Integrated Protections: Equipped with automatic valve blockage protection, clogging detection, and fail-safe position programming.
- Protocol Variations: Beyond the standard version, specific model variants exist to integrate directly with building management systems, including BACnet/Modbus and KNX bus configurations
